Description

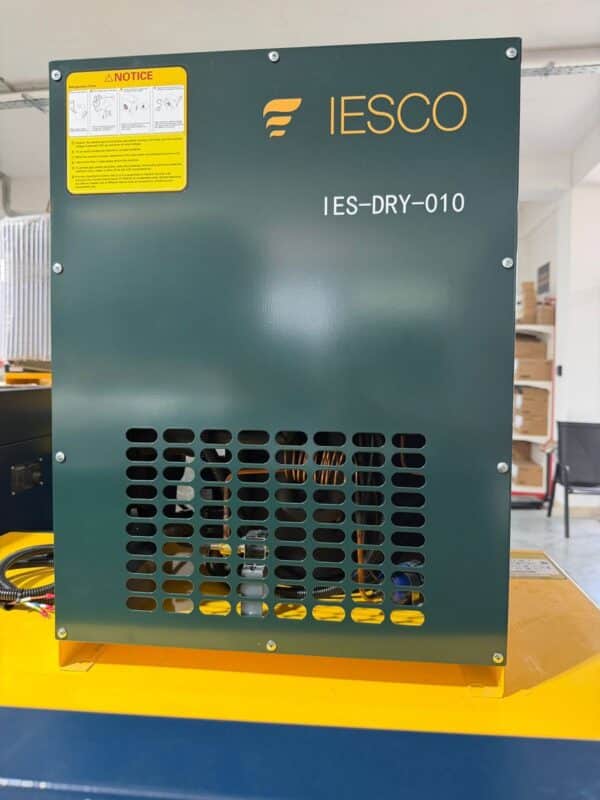

IES-DRY Air Dryer — A complete series of refrigerated dryers with a capacity from 300 to 85,000 L/min: from compact models suitable for dental clinics to large industrial compressor stations.
Why is an air dryer essential?
Compressed air always contains moisture — and condensate is the main enemy of pneumatic systems: corrosion in pipes, damaged instruments, defective products, and a breeding ground for bacteria. A dryer removes moisture from the air and protects the system.
Technical Specifications
Capacity Range: 300 – 85,000 L/min — The model is selected according to your compressor’s capacity.
Dew Point: +3°C — The industrial standard for refrigerated dryers: air is dried to a level where condensate no longer forms in the system under normal operating conditions.
How to choose a dryer — Correction Factors
The nominal capacity of a dryer is calculated based on standard conditions — however, the actual working environment differs. For correct selection, the following must be considered:
Ambient Temperature — The hotter the room (e.g., +35°C+ compressor room), the greater the load on the dryer, and the model should be selected with a reserve.
Inlet Air Temperature — Hot air exiting the compressor carries more moisture; a more powerful model is required for high inlet temperatures.
Working Pressure — Nominal capacity is calculated at 7 bar; capacity correction is required when operating at lower pressures.
Load Regime — Continuous 24/7 cycles and peak consumption require different calculations.
Ignoring these factors is the most common mistake: a dryer that is ‘sufficient on paper’ fails in real conditions, and moisture appears in the system. IESCO engineers will provide you with a precise calculation, free of charge, taking into account all correction factors.
Who is IES-DRY for?
Small Models — Dental clinics, laboratories, small workshops: compact housing that fits next to a cabinet compressor.
Medium and Large Models — Food production, paint shops, pharmaceuticals, large production lines, and compressor stations.
Complete System from IESCO
The dryer is part of the compressor chain: screw compressor → dryer → inline filters → air tank. You can purchase everything together — with unified calculation, installation, and service throughout Georgia. Spare parts are continuously in stock in Tbilisi.
🎯 Contact us: 032 206 01 00 — or view the complete range of air dryers.
